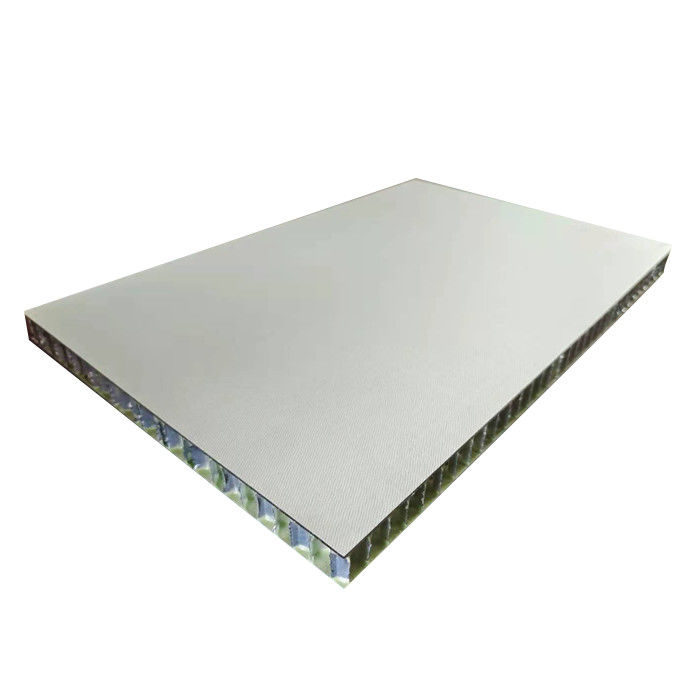

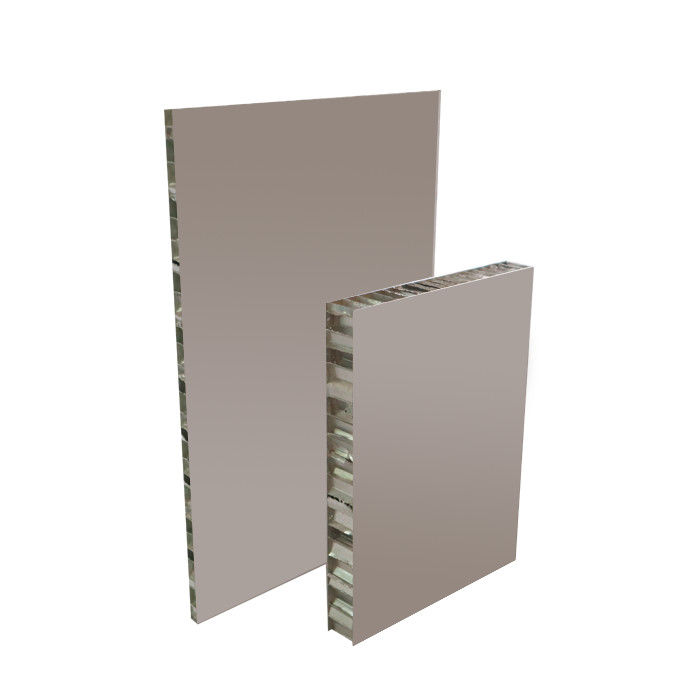

Aluminum Honeycomb Core Sandwich Panels For Building And Furniture Use
WDF manufactures very high quality Aluminium Honeycomb Panels that are bonded with aluminum face material and with a core in
aluminum honeycomb. Our honeycomb panels are produced according to the needs of our clients, therefore dimensions and specifications
are determined by our customers.
In addition we offer custom manufacturing of Honeycomb Panels. Foshan WDF offers design, test and prototyping assistance to build you a composite sandwich structure.

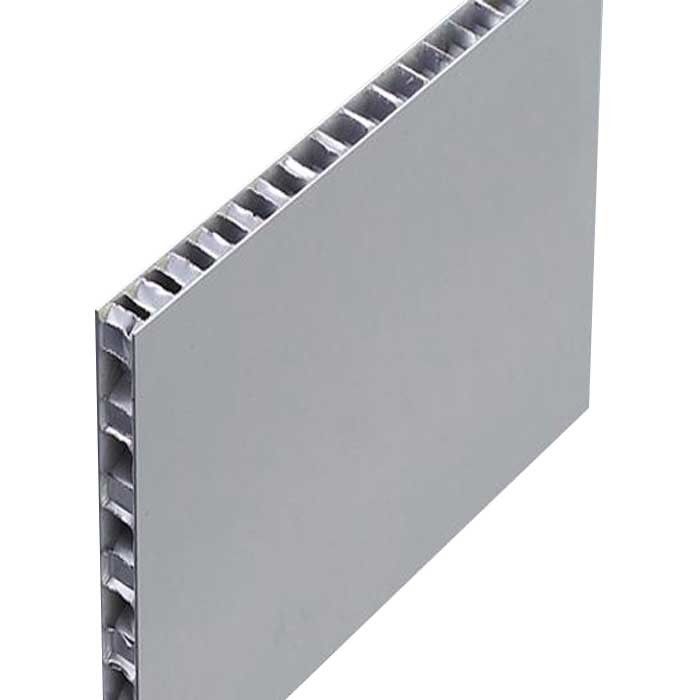

Structure:Aluminum Skin+Aluminum Honeycomb Core+Aluminum Skin
Aluminum Honeycomb Core
At a Glance:
|
RODUCT NAME
|
Aluminum honeycomb panel/metal honeycomb panel/honeycomb sandwich panel
|
|
SKIN MATERIALS
|
aluminum, fiberglass, zinc, carbon fiber, galvanized sheet
|
|
THICKNESS
|
3 -200mm
|
|
STANDARD SIZES
|
1250x2500mm, 1500x4800mm
|
|
MAX SIZES
|
1650x12,000mm, 2000x3000mm
|
|
TEMPERATURE RANGE APPLIED
|
-40° to 117°
|
|
FINISH
|
mill finish, RAL colors, wood/stone pattern,anodized, brush,mirror
|
|
STANDARD
|
CN, BS, ASTM
|
|
CAPACITY
|
50K m2/month
|
WDF aluminum honeycomb panels structures deliver:
HONYLITE offers many manufacturing capabilities that can provide a unique sandwich panel solution for your application.
| Physical Property | ||
| Item | Unit | T=10mm |
| Weight | kg/m3 | kg/m3 |
| Thermal expansivety | 23x10-6 | |
| Heat conduction ratio | /ºC | 1.7 |
| Cimbustion | W/MºC | Flame Resist / Class B1 |
| Presssing-proof | 1.72 | |
| Pulling-proof strong modulo of the surface | Mpa | 20-50 |
| Bending protracting ratio | Gpa | 5% |
Application
Aluminum honeycomb panel has widely used in facade cladding industry, interior decoration, ceiling, partition,
furniture industry, ship hull building and ship decoration, vehicle building and so on.
