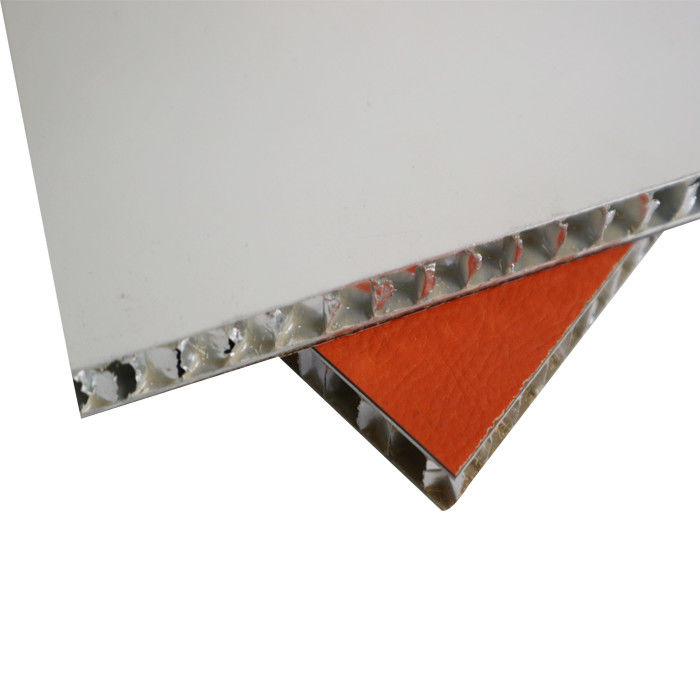

Light Weight Aluminum Honeycomb Panels Aerospace For Aircraft Interiors
Definition
Aluminum Honeycomb Panels Aerospace is a sandwich panel made with aluminum facings and high density 5.7 lbs/ft3
aluminum honeycomb core, designed for use in aircraft interiors.
Structure
Aluminum Skin + Aluminum Honeycomb Core + Aluminum Skin
Specification:
| Coating | PVDF Kynar500 / FEVE / PE |
| Coating Thickness: | PVDF & FEVE >25microns PE>15microns |
| Panel Thickness | 2mm, 3mm, 4mm, 5mm, 6mm upto 15mm |
| Aluminum Skin Thickness | 0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm |
| Alloy | 1100, 3003, 3005, 3105, 5005 |
| Panel Width | 1220mm, 1250mm, 1500mm, 1575mm, 1750mm |
| Panel Length | 2440mm, 4880mm, 5000mm, 5800mm |
| Core | LDPE core, Mineral Filled FR core |
| Cutting to size | Milling | Drilling | Joining | Cut to Shape |
| Panel folding | Panel edging | Inserts | Painting | Veneering |
Features:
High strength-to-weight ratio
Good cost effectiveness
Service temperature: up to 180oF
Packing and Loading:
| Packing Method | Loading Quantity for 3mm | Loading Quantity for 4mm |
| Wooden Pallet | 1500pcs | 1100pcs |
| In Bulk (nude packing) | 2000pcs | 1400pcs |
Application
designed for use in aircraft interior structural and nonstructural applications such as monuments, shelving, partitions, bulkheads and galleys.
